DIY Bathroom Renovation: How to Build a Custom Tiled Shower Pan

Apartment Therapy Tutorials

Pin it button big

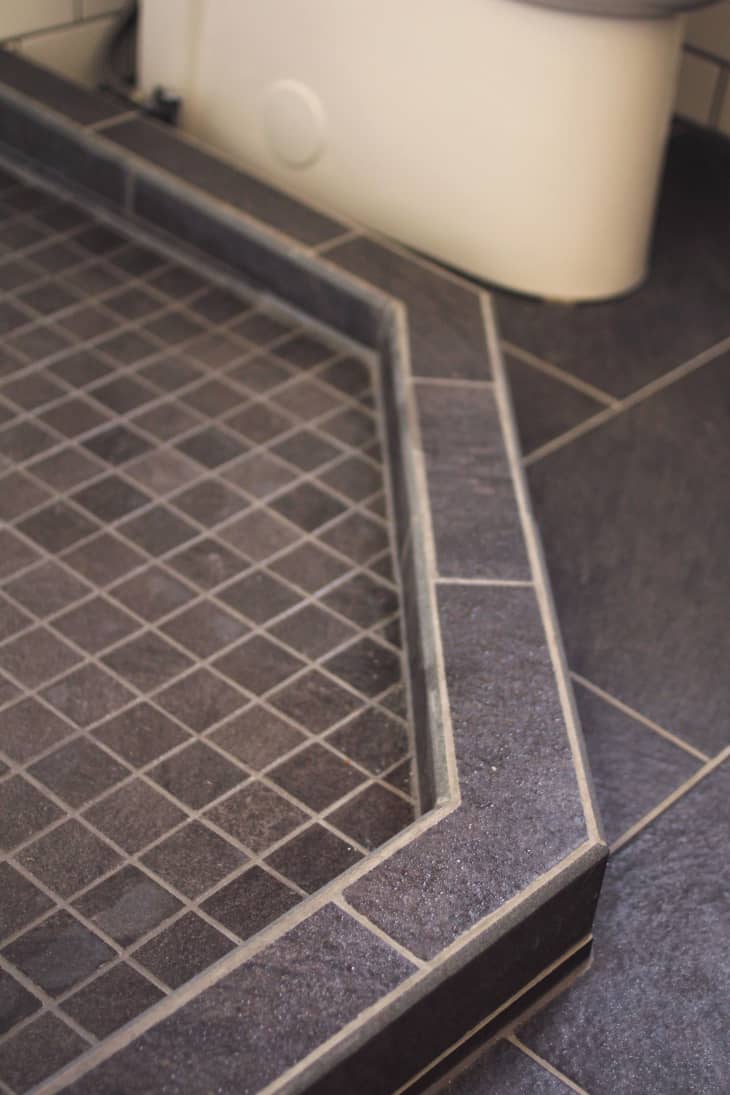

As a home owner, building a custom shower can increase the value of your home. It offers a unique look and seamlessly integrates the shower base to your bathroom floor. If you're a DIY renovator, this tutorial will help you understand the scope of work involved.

A professional custom shower base installation, including tiling, can run over $1000. If you dislike the look of pre-made fiberglass shower pans, and you feel capable of building a custom shower pan yourself, a beautiful and affordable shower base is possible for a couple hundred bucks. Our custom base, for a 40x40 shower enclosure, cost us about $200 and two days of work. Here's what you'll need.

What You Need


Materials

  • Spec Mix Preblend Dry Mortar (cement and sand mix) x 2 bags
  • Thin-set
  • (2) 2x4"x8ft lumber board (to build shower curb)
  • 1/2x1"x7ft boards (to use as shower door model)
  • Tile and bullnose tile (for shower curb)
  • Mosaic tile for shower floor
  • Grout
  • Tile caulk (matching grout color)
  • AquaDefense liquid waterproofing barrier (Redgard also works well)
  • 4" Screws
  • 1" Nails

Tools

  • Chop saw
  • Hammer
  • Protractor
  • Margin trowel
  • Level
  • Pencil
  • Disposable paint brush
  • Small foam roller
  • Bucket
  • Wet rag

Instructions

Plan and Build the Shower Curb

I found this diagram and am excited to see that someone else has built shower pans the way we did.
Pin it button big

The main objective is to create a completely waterproof sloped floor, with a drain, raised edge frame, and pretty mosaic tiles to cover it all up.

Pin it button big

1. You should have your shower enclosure measurements before you start building your shower pan. In my case, I'm building a shower pan for a 40" neo-angle shower enclosure, which includes 2 glass panels and 1 glass door.

Pin it button big

2. Using the 1"x2" boards, create a model representation of your shower door/panels.

Pin it button big

3. Once it looks right, tape the boards down to secure them.

Pin it button big

4. The shower curb width should be about 3-4" wide. Measure and mark the guides so the shower doors sits near the middle of the curb.

Pin it button big

5. Draw the outline of your shower curb. This will be the dimensions of the mold you will build for your concrete curb. Take your 2x4s mark and cut the them to the size of your frame.

Pin it button big

6. Using the protractor, measure and mark the needed angles to cut your inner and outer shower frame. (I haven't seen a protractor since the 5th grade, so we used an angle guide that came with my laser level.)

Pin it button big

7. Chop the ends of 2x4s to the marked angles.

Pin it button big

8. Assemble the wooden frame (with both outer and inner edges) for your shower curb.

Pin it button big

9. Remove the small boards that were taped down. Make sure the width of the curb is still 3-4".

Pin it button big

10. Using the small boards, cut, then nail them together to secure your frame.

Pin it button big

11. Drill screws into the floor (backerboard) at every joint and about every foot. Once the mud is poured and cured, these screws will help secure the curb to the floor.

Pin it button big

12. Your frame is finished and now is ready for the mud!

Pin it button big

13. Mix mortar with water according to label directions.

Pin it button big

14. Pour in the mud and stir it to prevent air pockets.

Pin it button big

15. Continue filling in the frame until it reaches the top of the 2x4s. Try to make the top as level as possible. The glass shower doors will need to be sitting on a flat leveled surface.

Pin it button big

16. After 24 hours, your curb should be hard enough to dismantle the frame.

Pin it button big

17. Using the drywall knife, even up the edges by scraping off any burrs and imperfections. You also want to place a small level on the width of the curb to ensure the curb is leveled. If needed, use a sander to level the curb.

Pin it button big

18. The top of your shower drain should be 2" above the floor. Draw a line along inner the perimeter of the curb and along the shower walls at 2 3/4" above the floor. This will be your guide of how much mud to pour giving you a 3/4" slope.

Pin it button big

19. Pour mud into the pan. Using the marginal trowel, mix mud thoroughly to ensure no air bubbles.

Pin it button big

20. Using the level, measure every 5 degrees to ensure all sides are sloping towards the drain.

Pin it button big

21. Smooth out any cracks or bumps in the shower pan. Add more mud (if needed) to match up with the 2 3/4"guide line then smooth the mud out and once again, using the level to ensure the perimeter is sloping towards the drain. Wait 3 days for the mud to completely cure before waterproofing.

Tip: To ensure there are no cracks, bumps or holes, turn off lights and shine a flashlight horizontally across the floor. You will see shadows if there are any imperfections.

Pin it button big

22. After the concrete has cured, it's time for waterproofing! To waterproof the shower pan, start by painting the perimeter, corners, and nooks with Aquadefense. Allow them to turn from aqua to green first, before applying the Aquadefense to the whole pan. Apply a second coat, making sure to cover any "pinholes" in the process. The combined coats should be about the thickness of a credit card. Wipe any excess waterproofing off with a damp rag.

Note: The photo above reveals one of our mistakes. We were suppose to build the pan before we tiled the walls. To ensure a properly waterproof shower base, you need to paint the waterproofing liquid at least 3ft up the walls so that water doesn't get under the tiles and onto the wood subfloors.

Pin it button big

23. Allow the Aquadefense to dry totally (and turn dark green).

Pin it button big

24. Now "dry lay" the tiles to ensure tiles will fit into the shower flow with no awkward slivers and cuts. (The dogs also really want to know if the tiles are sloping towards the drain.)

Pin it button big

25. Make sure to use small mosaic tiles on the shower floor. Mosaic tiles are easier to create a gradual slope without it being too noticeable. The grout lines also give you more traction making wet floors less slippery. For steps and tips on how to tile read the AT tutorial here.

Tip: Be care not to puncture the waterproofing when applying thinset and tile. If you do, re-apply Aquadefense and wait until it completely dries before applying tile.

Pin it button big

26. Carefully caulk the drain to ensure its circumference is completely sealed.

Pin it button big

27. Caulk along the corners and every "change of plane." This includes where the curb meets the small shower floor tiles, where the curb meets the large bathroom floor tiles, and where the small mosaic tiles meet the subway wall tiles.

Pin it button big

28. Now, after grout cures, seal all grout lines (including your shower walls). Now I'm just waiting to get the Dreamline glass shower enclosure I ordered!

Shower Base Budget Breakdown for 40x40 Shower:

Total = $219

Two 8 hour days plus curing time of 3 days

Note: Please take the extra steps to properly install the drain and all necessary waterproofing which I don't fully cover in this tutorial. A properly sealed and waterproof shower base will ensure your subfloors and joists are safe from water damage and mold.
